SC-PM-25

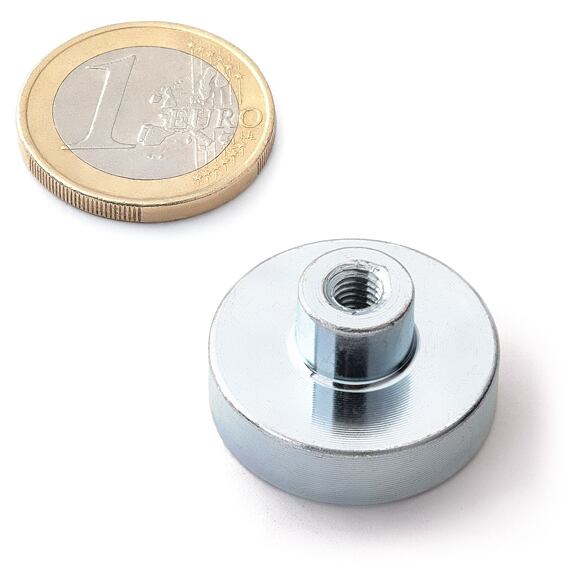

Magnet in steel cylinder with stem, M5, Force: 15 kg, Diameter: 25 mm, Height: 7 / 14 mm, Max. working temperature: 300 °C
Strength: 15 kg
Product code: SC-PM-25
Review
Hide reviews
This product currently has no reviews.
Information on how to get reviewsMagnet in steel cylinder with stem, M5, Force: 15 kg, Diameter: 25 mm, Height: 7 / 14 mm, Max. working temperature: 300 °C
Strength: 15 kg
Product code: SC-PM-25
Parameters
| Shape | magnetic holder with internal thread |
| Dimensions | Ø 25 mm, Výška 7/14 mm |
| Tolerance | ± 0.1mm |
| Weight | 30 g |
| Coating | galvanized (Zn) |
| Magnetisation | YXG-28 |
| Strength | 15 kg |
| Max. working temperature | 300°C |
| Material | SmCo |
| Thread | M5 |
| Strength | 15 kg |
| Diameter | 25 mm |
| Height | 7 mm |
