Ferrite magnetic pot Ø 20 mm, strength 2.3 kg
No products found TF-20
Ferrite magnetic holder Ø 20 mm, height 6 mm galvanized housing, countersunk screw hole Ø 4.5 mm, up to 200 °C, corrosion-resistant,...
Corrosion-resistant ferrite mounts in a metal housing – cheaper and more durable
Ferrite magnetic holders, holding and furniture magnets are suitable for fixing covers, panels, smaller insect screens, promotional materials, and signs. Ferrite holders and brackets have lower magnetic force than neodymium holders, but they are cheaper, have higher temperature resistance, and thanks to natural corrosion resistance, you can use them outdoors as well. Choose the right type.
Sort by Recommended: Products are listed by product name in ascending order. In this section, some items are set to be placed at specific positions.
Product details / Show results in
5
Products
As a counterpart to magnetic holders, steel screw bases are suitable. We state the magnetic pull-off force for the perpendicular direction to the substrate. If you place the ferrite holder on a vertical surface, the holding force may be lower – depending on the surface treatment and roughness of the supporting material.

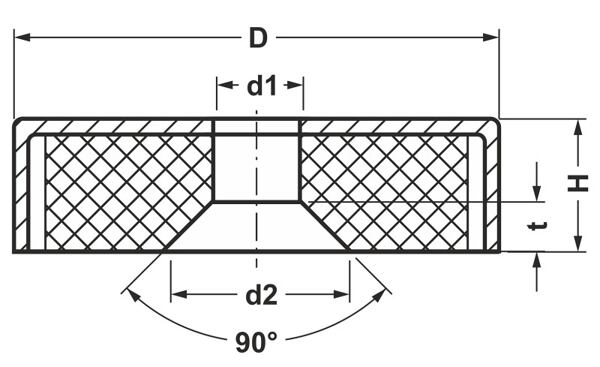

| D | d1 | d2 | H | |
| TF-20 | 20 | 4,5 | 8 | 6 |
| TF-25 | 25 | 5 | 10,5 | 7 |
| TF-32 | 32 | 5,5 | 11,5 | 7 |
| TF-40 | 40 | 5,5 | 15,5 | 8 |
| TFC-50 | 50 | M8 | 10 |
Choose the appropriate type of durable magnetic holder.
